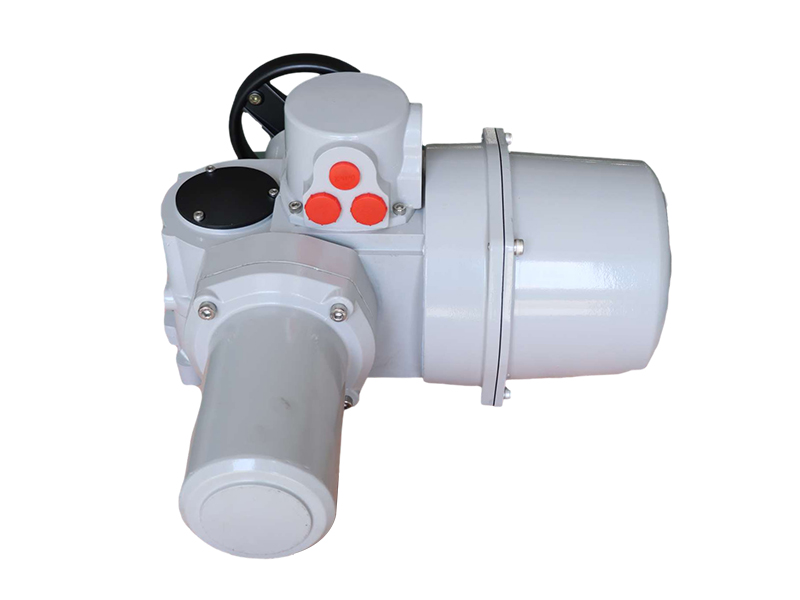

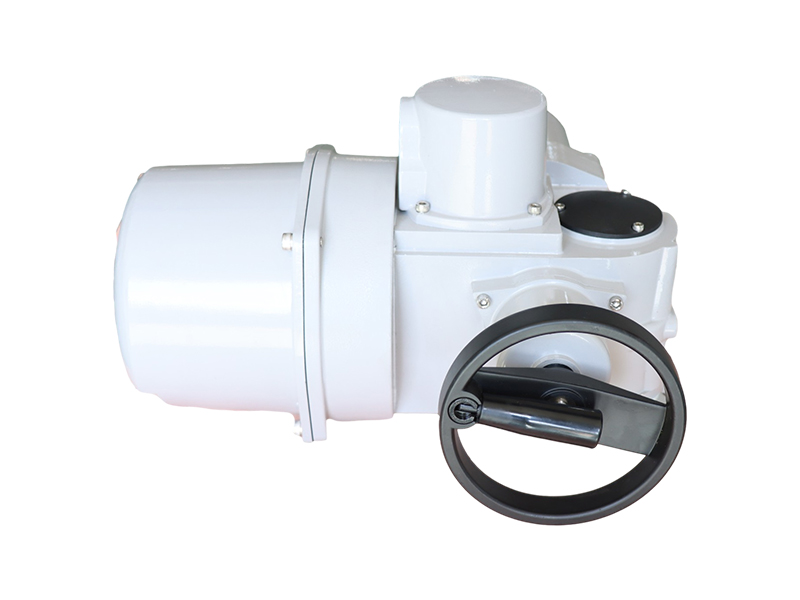

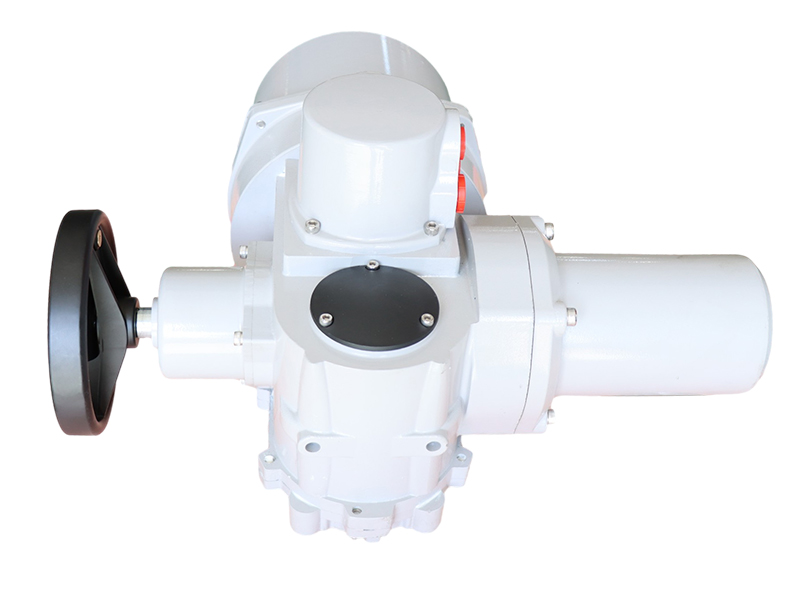

Multi Turn Lmp-p Series Of Electric Actuators
- category :Electric actuator
- email :vsdeme@vsdeme.com
- phone :+86-0578-2927663
Performance characteristics
1、 Overview of electric actuator products
Lmp-p series is a simple, stable and reliable intelligent multi turn electric actuator produced by lmtork company, which is used for opening, closing and automatic control of valves. LMP series intelligent multi turn electric actuator is suitable for gate valve, globe valve, diaphragm valve and various regulating valves.
Widely used in power plants (hydropower, thermal power, nuclear power), oil (gas) fields, refineries, steel, chemical, (sewage) water treatment, pharmaceutical, shipping, paper, heating, building automation and other industries.
The power supply uses AC380V / 220V / 110V (non-standard customized) as the driving power, switching signal (active and passive) and 4-20mA current signal as the control signal to make the valve move to the required position and realize its automatic control. The maximum output torque reaches 5000n · M.
2、 Performance characteristics of electric actuator
2.1 shell
The shell is made of hard aluminum alloy, anodized and coated with polyester powder, with strong corrosion resistance and protection grade of IP67. IP68 and B flameproof type are available for selection (please specify when ordering).
2.2 motor
Totally enclosed squirrel cage motor is adopted, which has the characteristics of small volume, large torque and small inertia force. The insulation grade of the motor is f and the built-in overheat protector can prevent the motor from being damaged by overheat.
2.3 dryer (optional)
It is used to control the temperature, prevent moisture condensation inside the actuator due to temperature and weather changes, and keep the internal electrical components dry.
2.4 valve position control
Mechanical and electronic double limit. The mechanical limit screw is adjustable, safe and reliable; The electronic limit switch is controlled by the cam mechanism. The simple adjustment mechanism can set the position accurately and conveniently.
The absolute value encoder converts the rotation of the output central shaft into digital signals. Each digital signal is unique in any state. The advanced and reliable DSP control system ensures the accurate positioning of the valve position.
2.5 torque process control
Can provide overload protection, in the valve jam, foreign matter, automatically disconnect the motor power supply, more effective protection of the valve and electric actuator from damage.
2.6 torque switch
Can provide overload protection, in the valve jam, foreign matter, automatically disconnect the motor power supply, more effective protection of the valve and electric actuator from damage( It has been set before leaving the factory. Please do not change the setting at will.)
2.7 self locking
The precision worm gear mechanism can efficiently transmit large torque, high efficiency, low noise (up to 50 dB), long service life, and has self-locking function to prevent reverse rotation. The transmission part is stable and reliable, and there is no need to refuel.
2.8 simple debugging
The infrared setter can be used for simple, safe and fast non-invasive adjustment. The lmtork setter can be used to enter and adjust the actuator settings, such as torque value, limit, control and display functions.
Lmtork provides a unique setter, which can set the actuator non invasively.
2.9 phase sequence self correction and open phase protection
The rotation direction of the actuator can be set freely, and the phase sequence of the power supply can be corrected automatically. The phase sequence of the power supply does not need to be considered in wiring. It also has the protection function of power supply phase loss and output phase loss.
2.10 signal free configuration and self diagnosis
There are four output contacts in total, and two contact signals are for users to choose. Each signal can be defined freely, and the other two contact signals cannot be defined freely. Powerful fault self diagnosis function, convenient for users to deal with faults in time and quickly, and master the operation status of equipment.
2.11 bus technology
There are modbus, PROFIBUS and other bus communication modules.
2.2 installation
The bottom mounting size meets the international standard of ISO5211, the drive shaft sleeve can be removed and processed according to the needs, with strong adaptability. It can be installed vertically or horizontally.
2.13 lines
The control circuit meets the standard of single-phase or three-phase power supply, the circuit layout is compact and reasonable, and the terminal can effectively meet the requirements of various additional functions( It can be processed separately according to customers' requirements.)
2.14 split control
The control unit of the actuator can be installed separately from the mechanical parts to solve the problems of high temperature, high altitude installation and debugging
technical parameter:
temperature range: -
30°C- +70C,
extreme environment :-
40°C-+80C,
relative humidity:95% ( 70°C)
(Cus tomizable)
altitude: Not higher than
2000m(Customizable)
Protection level: IP68
Explosion proof grade:
EXd IICT4
Working mode of motor: S2-15min short time working system,Class F insulation
Connection standard: JB2920/ISO5210(Cus tomizable )
Cable inlet: M20*1.5(0ne) 、M25*1.5(Two) ( The maximum number of cable inlets is 6)
( Cus tomi zable)
Main electrical parameters:
Power Supply:
Three phase 380V AC 50Hz
Single phase 220V AC 50Hz
( Other customi zable)
Contact capacity: 250VAC 5A,30VDC5A
Connection number :
30
Signal conductor sect ion:
Less than or equal to 2.5
square mm power wire section:
≤6mm2
phase)
*LMP-P Performance summary of actuators
Table 4
*LMP-P Installation dimension of actuator
*LMP-P Installation dimension of actuator
*LMTORK Working principle diagram
*LMTORK Control and wiring
The wiring mode of intelligent electric actuator is corresponding to the function of the actuator. The
cus tomer connects according to the requirements of the automatic control system and the funct ional
characteristics of the actuator. The funct ional characteristics of the actuator are connected. The funct ions
and corresponding terminals of the actuator are as fol lows:
The terminals used below are the terminals of basic configuration, and the other terminals are addi t ional
contacts and alternative funct ions. .
Warning: please refer to the rated voltage of the electric actuator system before connecting the three-phase
power supply. When the power supply is three-phase 380V,the porer supply is connected to terminals 1 / u, 2 /
V and 3 /W; When the power supply is single-phase 220 V, the power supply is connected to 1 /L,2 / n.
*LMTORK Control and wiring
Wiring diagram of regulating interna l power suppl y
Note: when selecting internal power supply,
No.4 is DC24 negative and No.5 is DC24
nositive.Wi ri ng_ di agram_ of
Note: only one type of power supply can be, se lected when selecting power supply mode, such as
negative connection is No. 36 when ac/dc24V is selected. Over 220V connected to No. 40,
After 36 is connected to the power supply, it can not be connected to 40. It can only be one of two.
