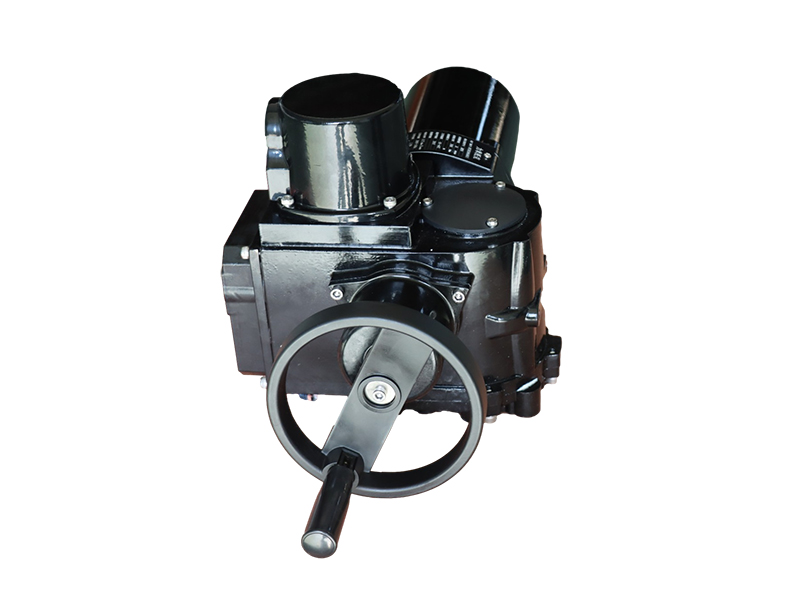

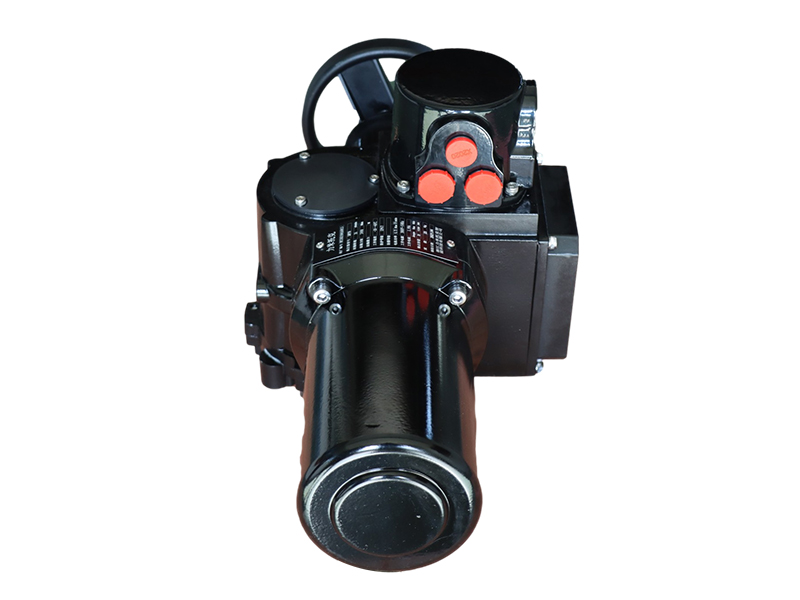

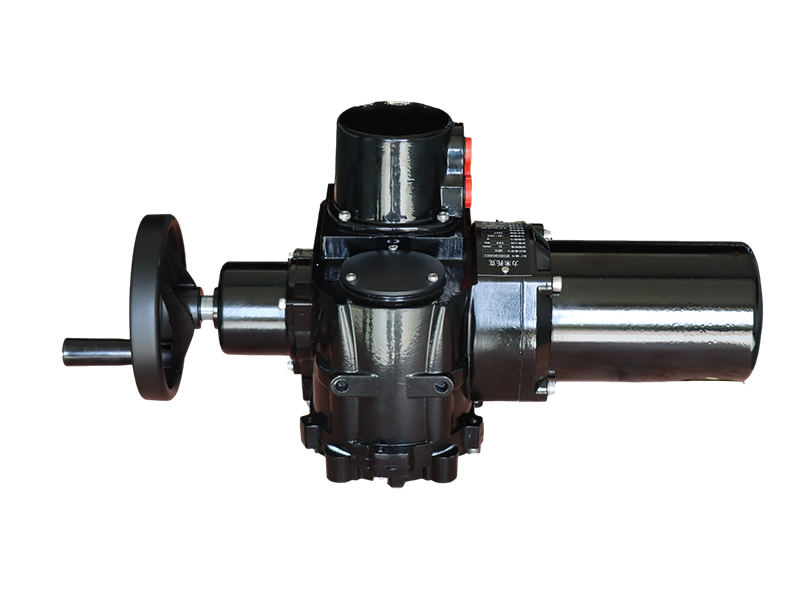

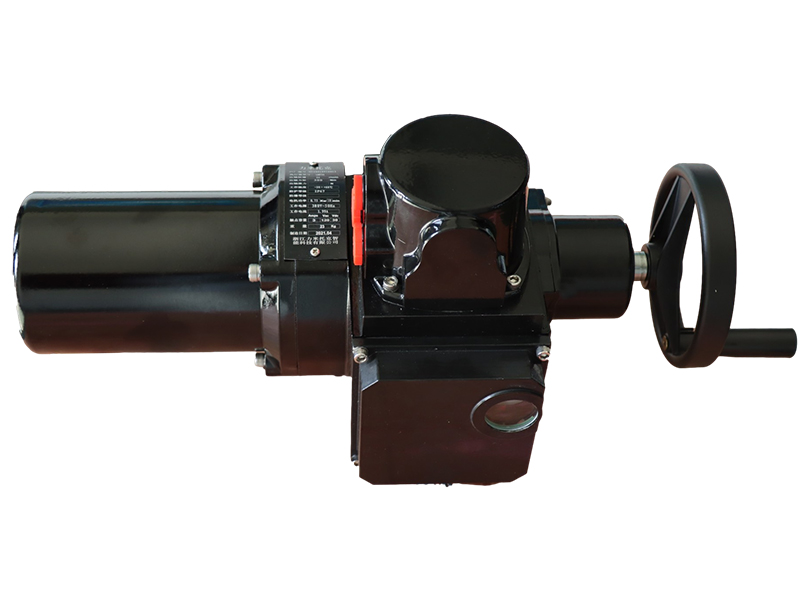

LMP Mechanical Electric Actuator
- category :Electric actuator
- email :vsdeme@vsdeme.com
- phone :+86-0578-2927663
Performance characteristics
1、 Overview of electric actuator products
LMP series multi turn electric actuators produced by lmtork are used for gate valve, globe valve, diaphragm valve and throttle valve. It can be ready to control the command action, and is a driving device to realize remote control, centralized control and automatic control of the valve. This series is widely used in power plants (hydropower, thermal power, nuclear power), oil (gas) fields, refineries, steel, chemical industry, (sewage) water treatment, pharmaceutical, shipping, paper making, public utilities and other industries.
2、 Performance characteristics of electric actuator
2.1 shell
The shell is made of hard aluminum alloy, anodized and coated with polyester powder, with strong corrosion resistance and protection grade of IP67. IP68 and B flameproof type are available for selection (please specify when ordering).
2.2 motor
Totally enclosed squirrel cage motor is adopted, which has the characteristics of small volume, large torque and small inertia force. The insulation grade of the motor is f and the built-in overheat protector can prevent the motor from being damaged by overheat.
2.3 dryer (optional)
It is used to control the temperature, prevent moisture condensation inside the actuator due to temperature and weather changes, and keep the internal electrical components dry.
2.4 indicator
The indicator is mounted on the central axis to observe the valve position. The mirror adopts toughened glass convex lens design, no water, more convenient to observe.
2.5 valve position control
The valve position travel control mechanism has high precision of adjustment and repetition, and can be equipped with two groups of microswitches in opening and closing directions.
2.6 torque switch
Can provide overload protection, in the valve jam, foreign matter, automatically disconnect the motor power supply, more effective protection of the valve and electric actuator from damage（ It has been set before leaving the factory. Please do not change the setting at will.)
2.7 installation
The bottom mounting size meets the international standard of ISO5211, the drive shaft sleeve can be removed and processed according to the needs, with strong adaptability. It can be installed vertically or horizontally.
1、 Overview of electric actuator products
LMP series multi turn electric actuators produced by lmtork are used for gate valve, globe valve, diaphragm valve and throttle valve. It can be ready to control the command action, and is a driving device to realize remote control, centralized control and automatic control of the valve. This series is widely used in power plants (hydropower, thermal power, nuclear power), oil (gas) fields, refineries, steel, chemical industry, (sewage) water treatment, pharmaceutical, shipping, paper making, public utilities and other industries.
2、 Performance characteristics of electric actuator
2.1 shell
The shell is made of hard aluminum alloy, anodized and coated with polyester powder, with strong corrosion resistance and protection grade of IP67. IP68 and B flameproof type are available for selection (please specify when ordering).
2.2 motor
Totally enclosed squirrel cage motor is adopted, which has the characteristics of small volume, large torque and small inertia force. The insulation grade of the motor is f and the built-in overheat protector can prevent the motor from being damaged by overheat.
2.3 dryer (optional)
It is used to control the temperature, prevent moisture condensation inside the actuator due to temperature and weather changes, and keep the internal electrical components dry.
2.4 indicator
The indicator is mounted on the central axis to observe the valve position. The mirror adopts toughened glass convex lens design, no water, more convenient to observe.
2.5 valve position control
The valve position travel control mechanism has high precision of adjustment and repetition, and can be equipped with two groups of microswitches in opening and closing directions.
2.6 torque switch
Can provide overload protection, in the valve jam, foreign matter, automatically disconnect the motor power supply, more effective protection of the valve and electric actuator from damage（ It has been set before leaving the factory. Please do not change the setting at will.)
2.7 installation
The bottom mounting size meets the international standard of ISO5211, the drive shaft sleeve can be removed and processed according to the needs, with strong adaptability. It can be installed vertically or horizontally.
technical parameter:
Optional temperature range .
: -20C- +60'C，-30C- - +70'C，-40C- +80"C,
extreme environment:0'C- +120C (Lmtork split
actuator can be used) .
relative humidity: 95% (70C)
(Customizable)
altitude: Not higher than
2000m(Customizable)
Protection level:
IP68
Explosion proof grade: EXd IICT4
Working mode of motor: S2-15MINShort term working system，Class F insulation
S5 intermittent cycle working system,
Minimum load duration 10% ，The maximum working
frequency is 1200C / h .
Connection standard:
JB2920/ISO5210(Cus tomizable )
Cable inlet: M20*1.5(0ne) 、M25*1.5(Two) ( The maximum number of cable inlets is 6)
( Customizable)
Main electrical parameters:
Power Supply: three-phase 380V AC 50Hz
single-phase 220V AC 50Hz
( Other' customi zable)
Contact capacity: 250VAC 5A,30VDC 5A
Connection number: 30
Signal conductor sect ion;
Less than or equal to 2.5
square mm power wire sect ion:
≤6mm2
Switch input: Input mode
Passive contact.. Voltage .
24VDC+/-20% electric current≤10MA ，The pulse width is
greater than 100ms Photoelectric isolation With reverse
voltage protect ion
Switch output: Output mode Passive contact: capacity 250VAC 5A,30VDC
5A
Set point input: Range 4-20MA
LMP/LMPM Series actuator performance data sheet ( 380V50Hz three-phase )
*LMP Performance summary of actuators
LMP/LMPM Series actuator performance data sheet ( 220V single-phase 50Hz )
Table 4
*LMP Installation dimension of actuator
