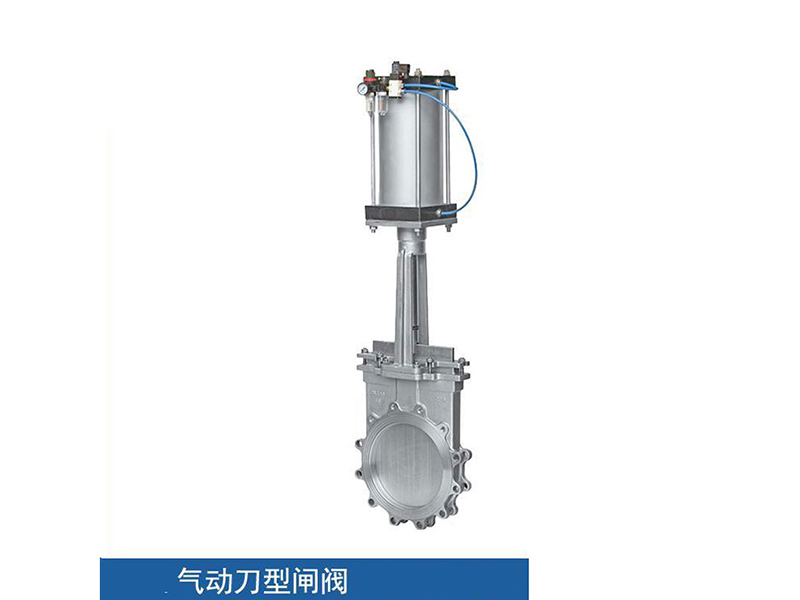

Electric knife gate valve
Overview of electric knife gate valve products:
Knife gate valve, also known as knife gate valve, knife gate valve, is suitable for pipelines with suspended particles, fiber materials, pulp, sewage, coal slurry,
- category :Complete set of valves
- email :vsdeme@vsdeme.com
- phone :+86-0578-2927663
Overview of electric knife gate valve products:
Knife gate valve, also known as knife gate valve, knife gate valve, is suitable for pipelines with suspended particles, fiber materials, pulp, sewage, coal slurry, ash cement mixture and other media. These media can be cut off by knife edge gate which can cut fiber materials. In fact, there is no chamber in the valve body. The gate rises and falls in the side guide groove, and is tightly pressed on the valve seat by the lug at the bottom. In order to achieve high medium tightness, the O-shaped sealing valve seat can be selected to achieve bidirectional sealing. According to the driving mode, it is divided into manual knife gate valve, pneumatic knife gate valve and electric knife gate valve. Knife gate valve is easy to operate, small in volume, smooth in passage, small in flow resistance, light in weight, easy to install and disassemble, with nominal size of DN50 ~ DN800, and can work normally under working pressure of 0.6MPa ~ 1.6Mpa and service temperature of ≤ 100 ℃. The gate of knife gate valve has shearing function, which can scrape away the adhesion on the sealing surface and automatically remove the impurities. Stainless steel gate can prevent seal leakage caused by corrosion.
Knife gate valve, also known as knife gate valve, knife gate valve, is suitable for pipelines with suspended particles, fiber materials, pulp, sewage, coal slurry, ash cement mixture and other media. These media can be cut off by knife edge gate which can cut fiber materials. In fact, there is no chamber in the valve body. The gate rises and falls in the side guide groove, and is tightly pressed on the valve seat by the lug at the bottom. In order to achieve high medium tightness, the O-shaped sealing valve seat can be selected to achieve bidirectional sealing. According to the driving mode, it is divided into manual knife gate valve, pneumatic knife gate valve and electric knife gate valve. Knife gate valve is easy to operate, small in volume, smooth in passage, small in flow resistance, light in weight, easy to install and disassemble, with nominal size of DN50 ~ DN800, and can work normally under working pressure of 0.6MPa ~ 1.6Mpa and service temperature of ≤ 100 ℃. The gate of knife gate valve has shearing function, which can scrape away the adhesion on the sealing surface and automatically remove the impurities. Stainless steel gate can prevent seal leakage caused by corrosion.
